Quick Details

  • Voltage: 12V
  • Certification: CE, ISO9001:2000, RoHS
  • Rated Current: 1 - 4A
  • Flow Rate: 501 - 1000GPH
  • wire: 100cm
  • voltage: DC12V; 24V(consult factory for other voltages)
  • pump body: thermoplastic
  • delivery head: 5m
  • outlet dia: 29mm
  • current: 3.8A/2.0A
  • delivery volume: 1100gph
  • certifications: CE,RoHS,ISO9001:2000
  • color: red,white, blue or consult factory for other options

Packaging & Delivery

Packaging Details Strong seaworthy cartons
Delivery Time Shipped in 8 days after payment

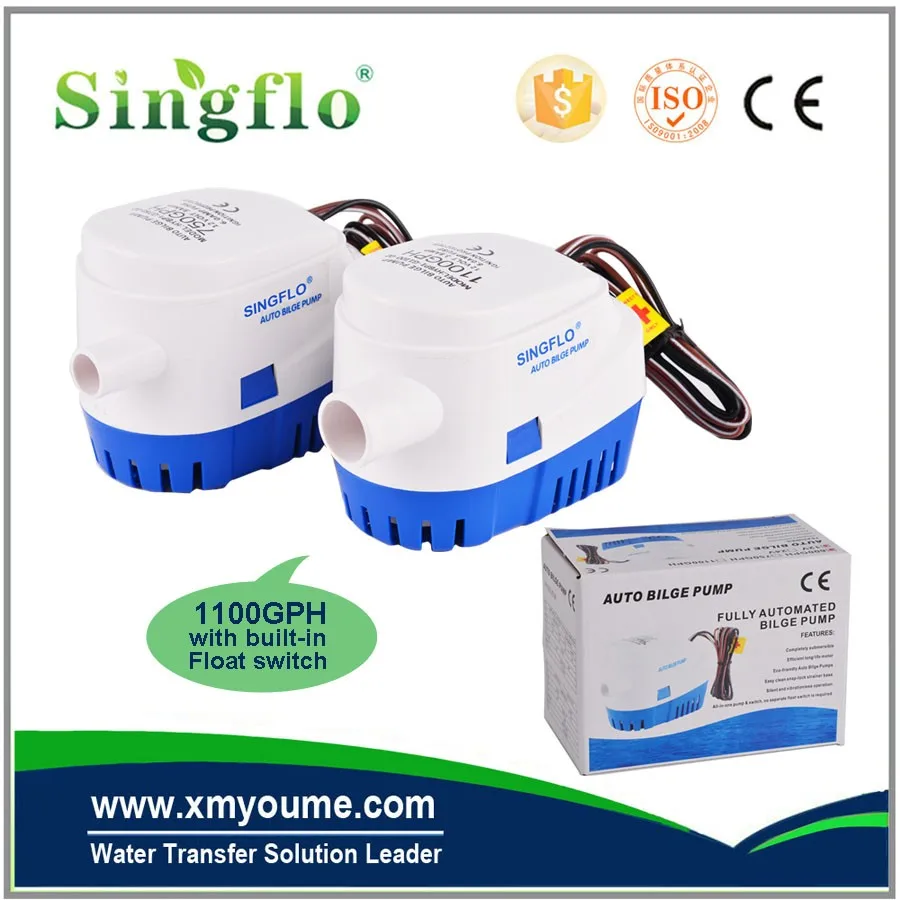

Singflo 12V/24v 1100GPH marine bilge pump for Marine RV

electric marine bilge pump, submersible bilge pump;mini bilge pump, automatic bilge pump, dc bilge pump;
ship bilge pump, boat bilge pump,yacht bilge pump.Typical Application: Marine, RV & Campers , Industrial

Product details

DESCRIPTION

*The submersible auto bilge pumps are equipped with built in electronic controlled reed sensor system to make fully automatic operation easy.

*No separate float switch is needed and relay loop design protect the pump against instant high currents.

*No power use until pump turns on when water rises.(Auto bilge pump)

*All (auto)bilge pumps are built with compact, rust and corrosion protected stainless steel shaft, high-impact durable and thermoplastic ABS plastic housing.

*Small size, high efficiency, low current to achieve a small size perfect combination of high flow.

*Totally submersible with anti airlock design and moisture tight seals.

*To all existing safety standard.

*Snap-lock strainer base for easy installation and removal and silent vibration free running.

*Connections: For 29mm bore hose.

*Limited one year warranty

Automatic bilge pumps can be used with switch panel for manual override

Includes comprehensive user manual with installation instructions and wiring diagram.

Typically used in boat hulls/bilges Bait tanks, Ponds,Pools spas etc.

TECHNICAL DATE

ModelFlow RateVoltsCurrentHeadWireOutlet Dia
YM-G600-12600GPH12V2.5A2.5M100CM19MM
YM-G600-24600GPH24V1.5A2.5M100CM19MM
YM-G750-12750GPH12V3.0A3.0M100CM19MM
YM-G750-24750GPH24V1.6A3.0M100CM19MM
YM-G1100-121100GPH12V3.8A5.0M100CM29MM
YM-G1100-241100GPH24V2.0A5.0M100CM29MM

KeyDescriptionQuantityKeyDescriptionQuantity
1Pump Cover19Impeller Cover1
2Motor Bracket110Strainer1
3Motor211Rotro1
4Motor Oil Seal112Round Wearplate1
5Wearplate113Oil Seal1
6Switch Assembly114Float1
7Pump Housing115Knob1
8Impeller1
